DESCRIPTION:
Flexibility , Better thermal conductivity.
Length of Cable : 1M
Size of Stainless steel sheath : 6 x 30mm
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to +125°C (-67°F to +257°F)
Storage temperature range : -55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C : ±0.5°C.
Applications:
Thermostatic Controls
Industrial Systems
Consumer Products
Thermometers
Any Thermally Sensitive System.
Connection:
Probe has 3 wires : Red, Yellow and Black,
Connect your probe as Output lead : Red (VCC), Yellow(DATA), Black(GND)
PACKAGE INCLUDES:

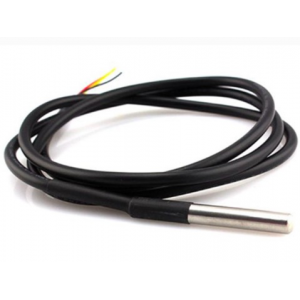

1 x Thermal probe/sensor DS18B20 (1M)
