Sonoff TH16 Temperature and Humidity Monitoring WiFi Smart Switch

• Real-time monitor–Monitor real-time temperature and humidity
• Auto Mode–Set Auto mode to turn on/off at a specified temp. or hum. range
• Manual Mode–Set manual mode to turn on/off immediately
• Trigger Smart Scene–The temp. or hum. values work as smart scene trigger conditions to trigger on/off other Sonoff devices
• Remote ON/OFF–Turn electrical devices on/off from anywhere, can work without TH sensor
• App Support –Free iOS and Android mobile App eWeLink
• Sync Status–Real-time device status provided to App
• Share Control– Control your smart home together with your family
• Timing–Set scheduled/countdown timers to turn on/off at specified time
• Scene–Turn on/off a gang of devices with one tap
• Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest

لینک ویدیو معرفی محصولات سان آف و توضیحات فنی جهت راه اندازی

ویدیو قسمت اول

ویدیو قسمت دوم

Overview

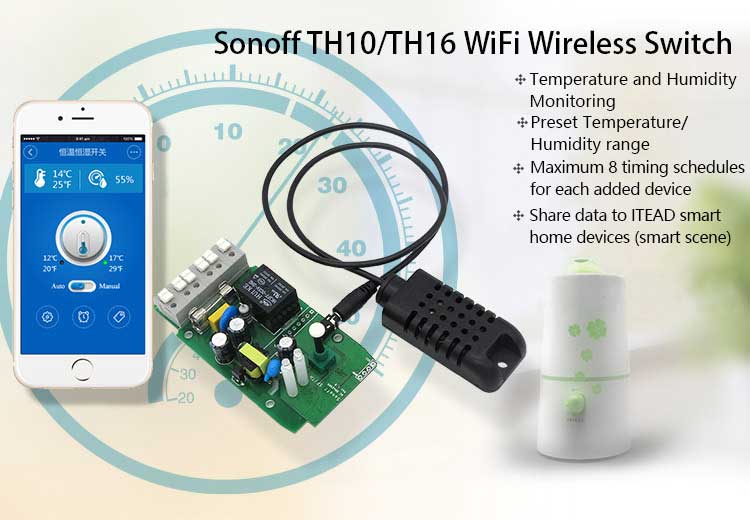

Sonoff TH10/TH16 is a wireless temperature and humidity monitoring switch which can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink. Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications: 10A or 16A.

Sonoff TH10/ TH16 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity. When the temperature or humidity of the environment falls within the range, it will automatically turn on or off the connected devices.

Sonoff TH10/ TH16 supports four kinds of temperature monitor and humidity monitor sensors, mentioned below:

• Si7021, AM2301, DS18B20, DHT11

Compare with other sensors, Si7021(wiki) is more accurate. It’s highly recommended!

Note: the sensors are not in the package of Sonoff TH10 /TH16, you have to enter the number you want to order in the corresponding field.

The sensor should be plugged before power on. It is not advised to plug or unplug the sensor in power-on state. DS18B20 is waterproof, which measures temperature only. Other sensors can measure both temperature and humdity.

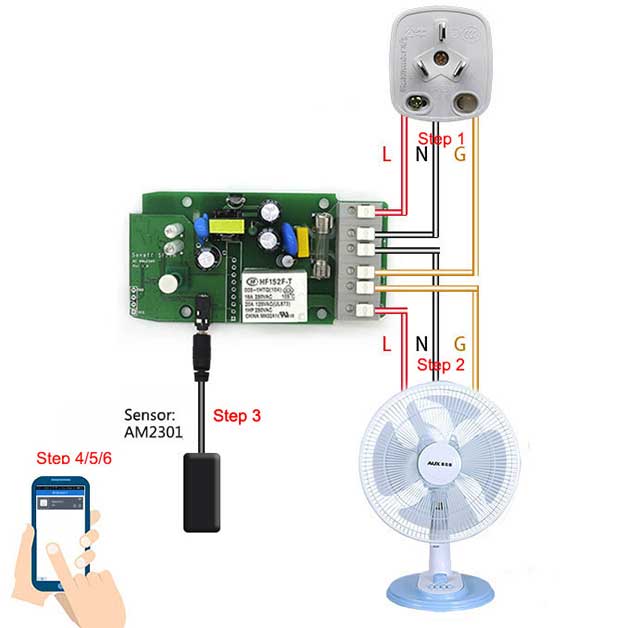

With the latest eWeLink app, users can create a series of simple conditional statement (Smart Scene) to trigger on/off other smart devices.  This means users can use Sonoff TH10 or Sonoff TH16 with Si7021, AM2301, DS18B20 or DHT11 sensor to collect temperature/humidity data, which can be used to as a condition to trigger on/off other smart devices, such as Sonoff, Sonoff RF, Sonoff SV, S20 smart socket (see below pic). This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc.

Features

• Supports tracking device status
• Supports remote turn on/off connected appliance
• Supports presetting temperature and humidity to turn on/off
• Supports 8 enabled countdown/single/repeat  timing tasks
• Support checking real-time temperature and humidity
• Support setting smart scene to trigger on/off other smart devices
• Works with Amazon Echo, Echo Dot, Amazon Tap
• Works with Google Home, Google Nest
• Works with IFTTT

Specification

• Input voltage: 90~ 250V AC
• Input current: Max 10A /16A
• Max. Power: 2200W(10A) /3500W(16A)
• Humidity: 5%-90%RH, Non-condensing
• Operating Temperature: 0ºC-40ºC(32°F-104°F)
• Wireless Standard: 802.11 b/g/n
• Security Mechanism: WPA-PSK/WPA2-PSK
• Enclosure Material: Fire-retardant ABS V0
• Dimension: 114*51*32 (mm)
• Supported temperature, humidity sensors: Si7021, AM2301, DS18B20, DHT11
• Gang: 1
• Certification: CE, RoHS, FCC

Si7021 Sensor

• Temperature Measuring Range: –40℃~+85°C
• Humidity Measuring Range: 0~100%RH
• Storage Temp.: –65℃~+150°C
• Operating Voltage: 2.2-3.6V
• Weight: 26g
• Length: 0.5m

AM2301 Sensor

• Temperature Measuring Range: -40℃~+80℃
• Humidity Measuring Range: 0~99.9%RH
• Power Supply: 3.3-5.2V DC (5V recommended)
• Temperature Sensor Type: Resistive
• Humidity Sensor type: Capacitive
• Weight: 22g
• Length: 0.5m

DS18B20 Sensor

• Type: Waterproof temperature sensor
• Probe: Stainless steel temperature probe
• Temperature Measuring Range: -55℃~+125℃
• Power Supply: 3.0-5.5V
• Weight: 26g
• Length: 1m

Features

• Supports 90 ~ 250V AC input
• Support max 10A /16A input
• Support fast configure SSID and password connection through APP
• Support automatic connect to server, register and update status info.
• Support tracking device status and timely remote control through APP
• Support setting single/repeat/countdown timing tasks
• Support real-time temperature and humidity displaying
• Support 3 temperature and humidity sensors (Si7021, AM2301, DS18B20, DHT11)
• Support preset temperature and humidity range to turn on/off

WIFI Characteristics

• 802.11 b/g/n

• Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS

• Built-in TCP/IP protocol stack

• Built-in TR switch, balun, LNA, power amplifier and matching network

• Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power

• A-MPDU&A-MSDU aggregation and 0.4μs guard interval

• WiFi @ 2.4 GHz, supports WPA / WPA2 safe mode

• Support cloud OTA upgrade

• Support STA/AP/STA + AP mode

• Standby power consumption is less than 1.0 mW (DTIM3)

• Other parameters are as follows

Specification

Electrical Characteristics
