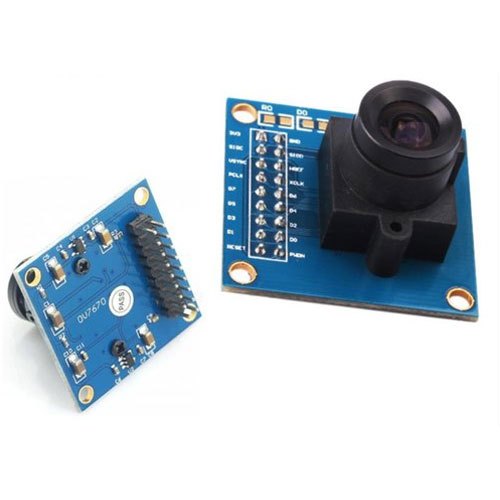

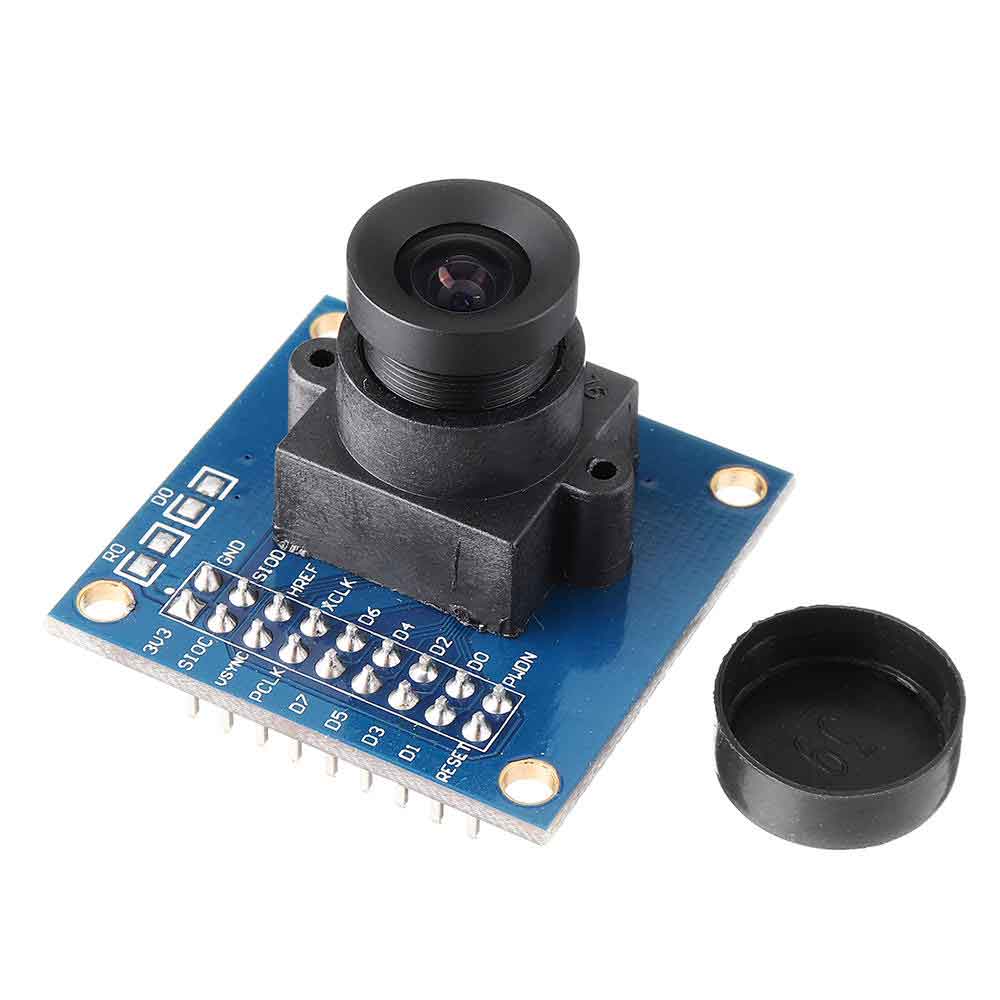

OV7670 Camera Module

OV7670 Camera Module

The OV7670/OV7171 CAMERACHIPTM is a low voltage CMOS image sensor that provides the full functionality of a single-chip VGA camera and image processor in a small footprint package. The OV7670/OV7171 provides full-frame, sub-sampled, or windowed 8-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface. This product has an image array capable of operating at up to 30 frames per second (fps) in VGA with complete user control over image quality, formatting, and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, and more, are also programmable through the SCCB interface. In addition, OmniVision CAMERACHIPs use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise (FPN), smearing, blooming, etc., to produce a clean, fully stable color image.

Features/Specs:

• Operating Voltage Range: 2.5V to 3.0V
• Angle: 25 degree
• Pixel Resolution: 640 X 480
• MODEL: OV7670 640X480 VGA CMOS CAMERA
• Operating Temperature Range: -30 to 70 deg C
• Pixel Coverage: 3.6um x 3.6um;
• Duck Current: 12 mV/s at 6’C
• Support VGA, CIF and from CIF to 40 x 30 format;
• Vario Pixel method for sub-sampling; Auto Image Control: AEC, AGC, AWB, ABF, ABLC;
• Image Quality Control: Color saturation, hue, gamma, sharpness, and anti-blooming;
• ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction;
• Flicker 50/60Hz auto-detection;
• Color saturation level auto adjust;
• Edge enhancement level auto adjust;
• De-noise level auto adjust
• High sensitivity for low light applications
• Low voltage suitable for embedded applications
• Standard scab interface, compatible with i2c interface
• Module Size:
• Length: 35mm
• Width: 25mm
• Height: 30mm
• Weight: 13gm

Package Includes:

• 1 x OV7670 Camera Module
