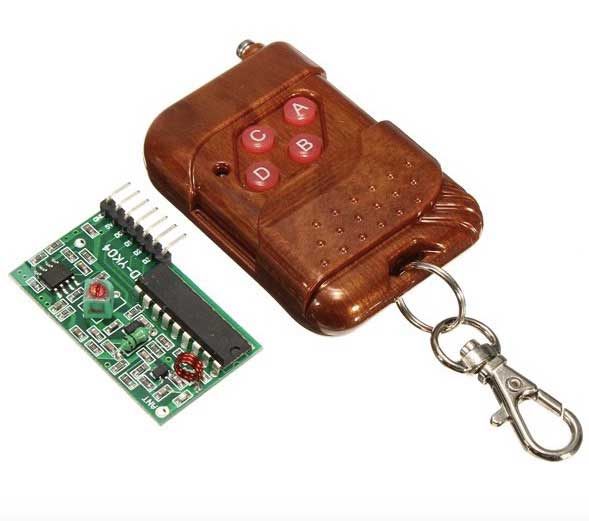

Name: IC2262/2272 4 Channel 315MHZ 4 Key Wireless Remote Control Kits
SKU: HP0153
Price: 1680000 IRR
Availability: InStock

IC2262/2272 4 Channel 315MHZ 4 Key Wireless Remote Control Kits

168,000 تومان

وزن

18 g

موجود در انبار

شناسه محصول: HP0153 دسته: ارتباطات

Features:

100% Brand new and high quality!

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of.

Press the buttons transmit signals, the corresponding data bit is output high.

Specifications:

Remote control

Operating voltage: DC12V

Operating Current: 10mA @ 12V

Radiated power: 10mw @ 12V

Modulation mode: ASK (Amplitude Modulation)

Transmitting frequency: 315MHZ

Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm)

Encoder types: fixed code

With decoding receiver board

The operating voltage DC5V, receiver sensitivity is-98db.

Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND.

VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.

Size: 6.6*22*41mm

Package includes:

1 x IC2262/2272 4 channel wireless remote control kits 4 key wireless remote 315MHZ

IC2262 / 2272-M4 4 Channel Wireless Remote Lock Receiving Board With Remote Control

Features:

1. CMOS Technology

2. Low Power Consumption

3. Very High Noise Immunity

4. Up to 12 Tri-State Code Address Pins

5. Up to 6 Data Pins

6. Wide Range of Operating Voltage: Vcc = 4 ~ 15 Volts

7. Single Resistor Oscillator

8. Latch or Momentary Output Type

9. Application environment: Wireless remote control switch, remote control socket, data transmission and remote control toys, anti-theft alarm host, garage doors, gates, gate, the gate door control, such as industry and its remote control sound field, etc.

Specifications:

Remote Control

1. Operating voltage: DC12V (27A / 12V battery a)

2. Working Current: 10mA / 12V

3. Radiation power: 10mw /12V

4. Modulation: ASK (amplitude modulation)

5. Transmission frequency: 315MHZ (SAW frequency stabilization)

6. Transmission distance: 50-100M (no proof, the receiver sensitivity is negative 100dbm)

7. Encoder Type: Fixed code

Decoding receiver board

1. Working voltage DC5V

2. Receiver sensitivity is -98db.

3. Size: 41*22mm

4. There are four buttons on the remote control, corresponding to the receiving board feet four data bits D0, D1, D2, D3. Press the button to transmit a signal, the corresponding data bit will output high.

Package Included:

1 x Decoding receiver board

1 x Remote control
