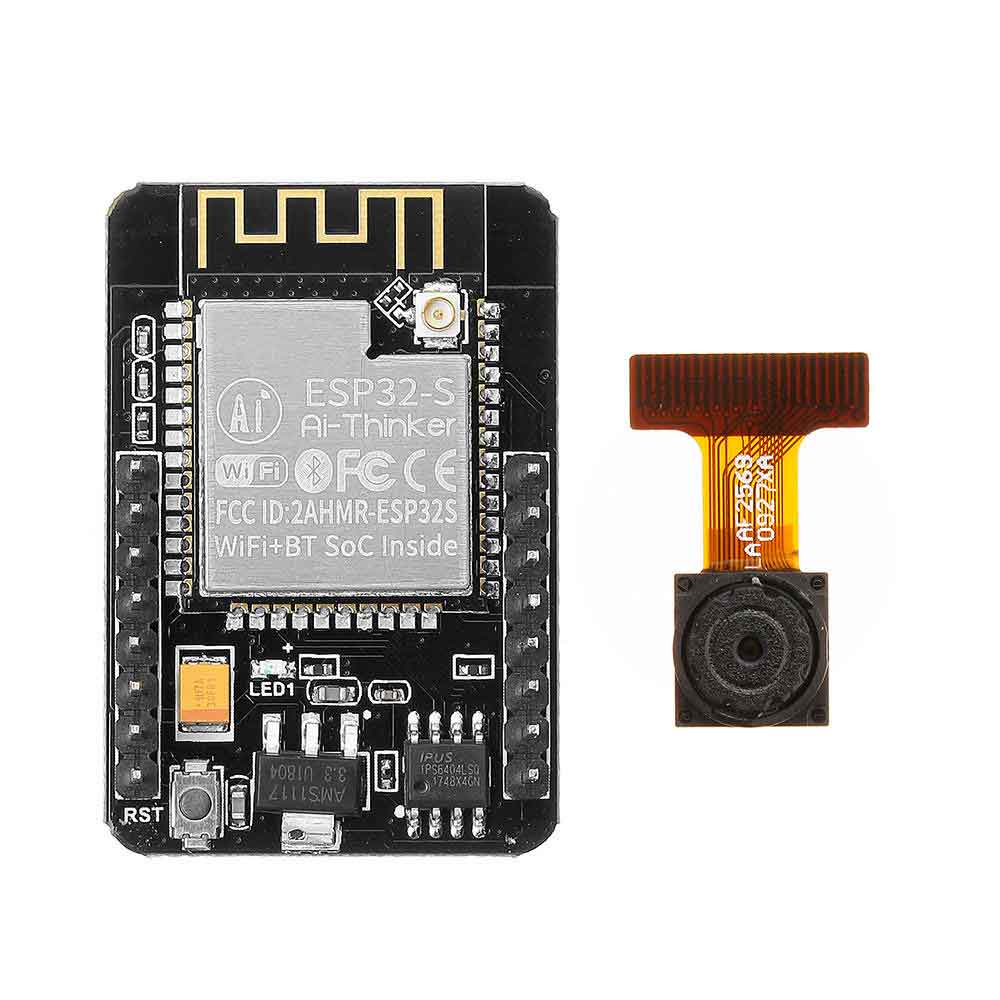

ESP32-CAM board specifications:
- Wireless Module- ESP32-S WiFi 802.11 b/g/n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM
- External Storage – micro SD card slot up to 4GB
- Camera
- FPC connector
- Support for OV2640 (sold with board) or OV7670 cameras
- Image Format – JPEG( OV2640 support only ), BMP, grayscale
- LED flash light
- Expansion – 16x through-holes with UART, SPI, I2C, PWM
- Misc – Reset button
- Power Supply – 5V via pin header
- Power Consumption
- Flash LED off – 180mA @ 5V
- Flash LED on to maximum brightness- 310mA @ 5V
- Deep-sleep – 6mA @ 5V min.
- Modem-sleep – 20mA @ 5V min.
- Light-sleep – 6.7mA @ 5V min.
- Dimensions – 40.5 x 27 x 4.5 mm
- Weight- 10 grams
- Temperature Range – Operating: -20 ℃ ~ 85 ℃; storage: -40 ℃ ~ 90 ℃ @ < 90%RH
