Double H bridge drive
• Chip: L298N
• Logical voltage: 5V
• Drive voltage: 5V-35V
• Logical current: 0mA-36mA
• Drive current: 2A(MAX single bridge)
• Storage temperature: -20 to +135
• Max power: 25W
Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN$ control OUT3 OUT4
Note: Package is not included the screws.
Package included:

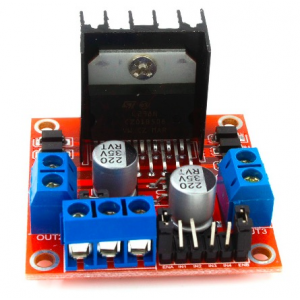

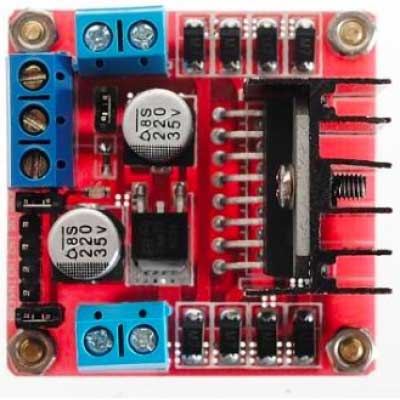

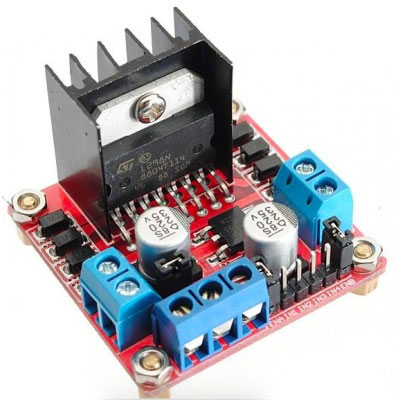

1 x 236 L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module arduino
