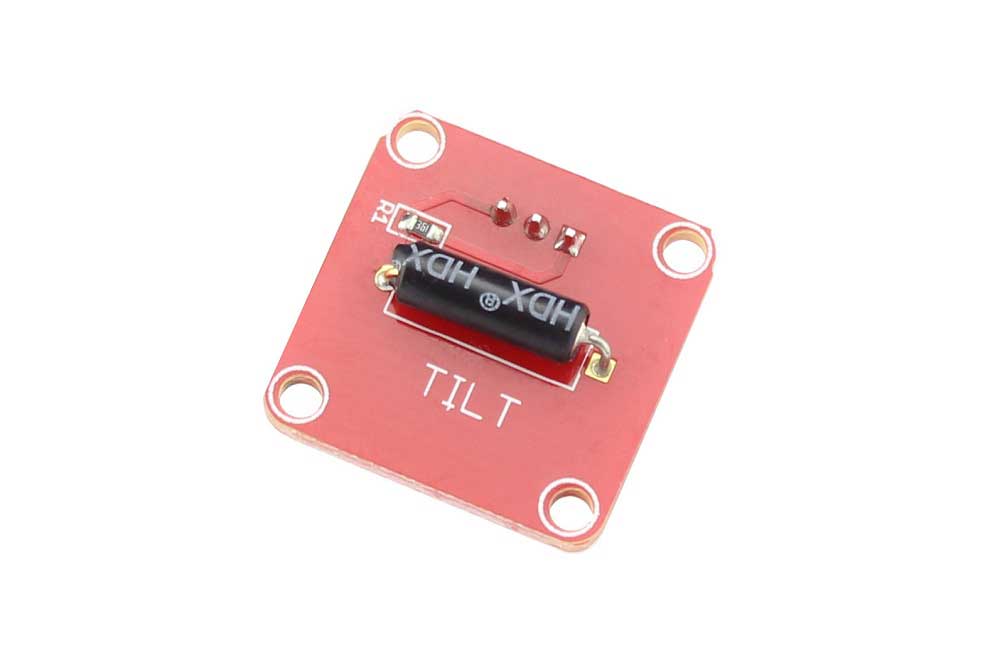

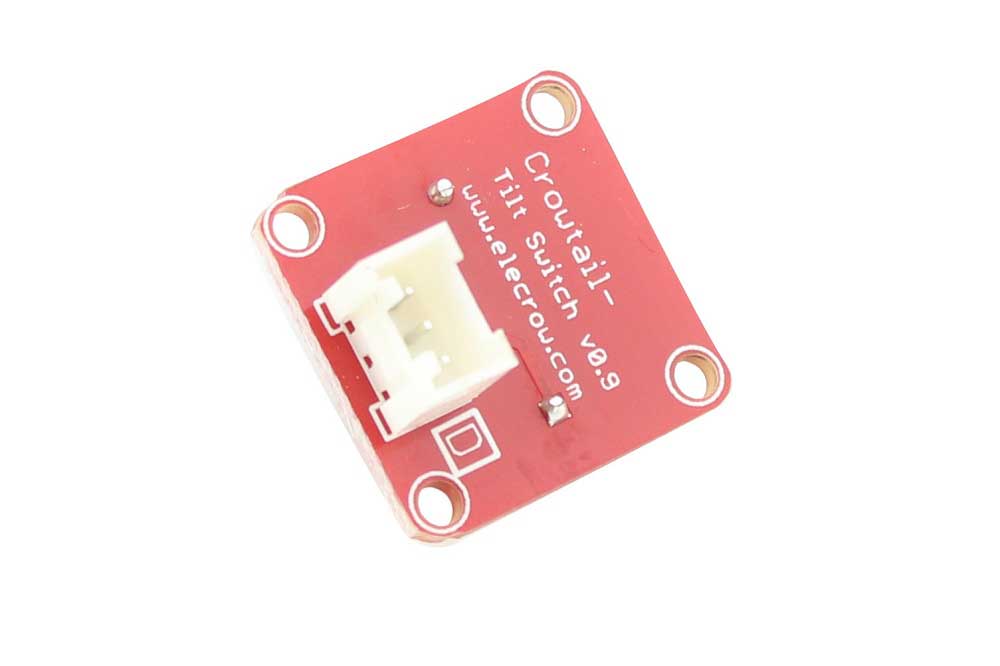

Crowtail- Tilt Switch

 The Crowtail- Tilt Switch is a sensor to detect the station of forwards. It outputs logic LOW in Horizontal direction and logic HIHG in vertical direction.
Inside the tilt switch is a pair of balls that make contact with the pins when in the case of vertical. Tilt the case over and the balls don’t touch, thus not making a connection.

Festure

• Crowtail Interface
• Easy to use

Specification

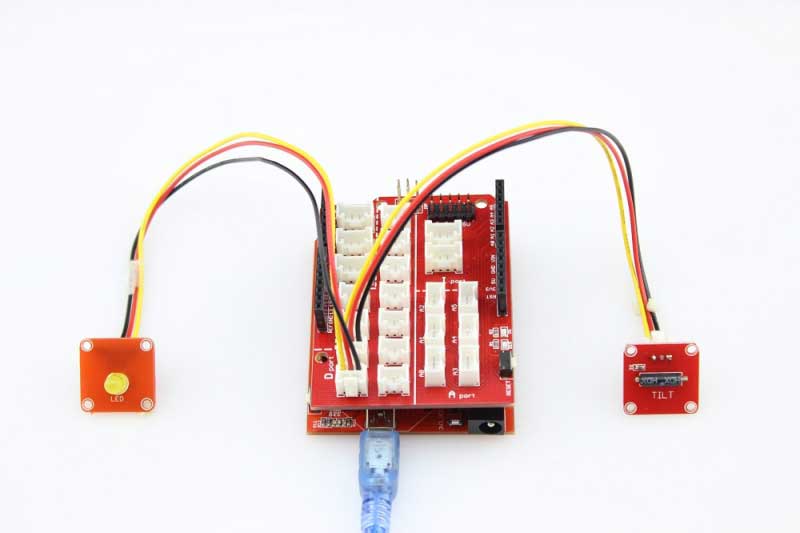

void setup()
{
   pinMode(4, INPUT); //connect to Crowtail- Tilt Switch
   pinMode(5, OUTPUT);//connect to Crowtail- LED
}

void loop()
{
 if (digitalRead(4)==HIGH)
 {
   digitalWrite(1, HIGH);
   delay(100);
   digitalWrite(5, HIGH);
 }
 else
{
   digitalWrite(5, LOW);
 }
}
