Features:

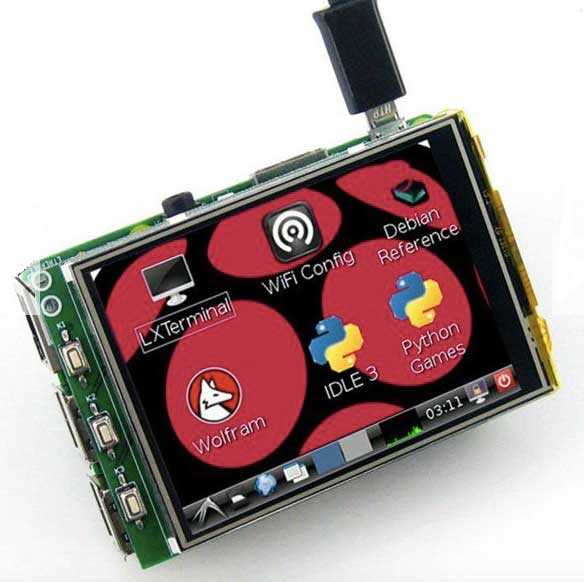

-Support access raspberry pie, easier to use
-Support Raspbian system that allows your system:
-Support for video playback (MP4 and other formats)
-Support for touch control camera (17 kinds of camera mode)
-Support soft keyboard (mouse and keyboard can also be controlled from the system)
Specification:
Type TFT
SPI Interface
Touch panel control chip XPT2046
Levels Index 65536
LED backlight
Resolution of 320×240 (Pixel)
Size ratio 4:3
Power consumption TBD
Backlight current TBDd
Operating Temperature TBD
Question: How much power does this consume?
Answer: 1A
1) Brightness of display in NITs ? At face of touch screen.– 250 lumens
2) Display Transmissive or Transflexive or Reflective ?– Reflective
3) Display Temperature range ?– -20~70℃
4) Display pixel response time ?– us Level
5) Resolution of touch screen ?– 320×240 (Pixel)
6) Touch screen 4, 5, 7 wire ?– 4 -wire Resistive Touch
