Specification:

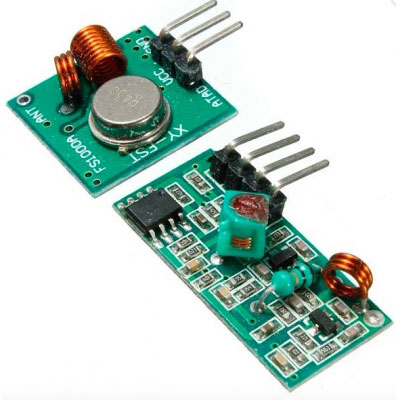

Receiver module:
Product Model: XD-RF-5V
Operating voltage: DC5V
Quiescent Current: 4MA
Receiving frequency: 433.92MHZ
Receiver sensitivity: -105DB
Size:30x14x7mm
Transmitter:
Technical parameters of
Product Model: XD-FST
Launch distance :20-200 meters (different voltage, different results)
Operating voltage :3.5-12V
Dimensions: 19 * 19mm
Operating mode: AM
Transfer rate: 4KB / S
Transmitting power: 10mW
Transmitting frequency: 433M
Pinout from left → right: (DATA; VCC; GND)
Package included:
1 x Receiver module
1 x Transmitter
