1.the lowest rated working voltage: DC4.5 5V-24V
2.maximum operating current: 15 mA (DC 5V)
3.working voltage range: DC 5~18 v
4.load capacity: 10 mA (DC 5V) or less
5.use temperature: 80 Degree or less
6.operating humidity range: 35%~90%RH (no frost)
7.allowing pressure: pressure 1.75Mpa
8.temperature: -25~+80 ° c
9.External threads: 1/2″
10. kept under the temperature: – 25 ~ + 80 Degree
11. keep humidity: 25% ~ 95% RH
12. Attention:Taboo water or water vapor into the circuit board
Apply to water heaters, credit card machines, water vending machine, flow measurement device.
Package Information:
1pcs As Picture Show
Description :

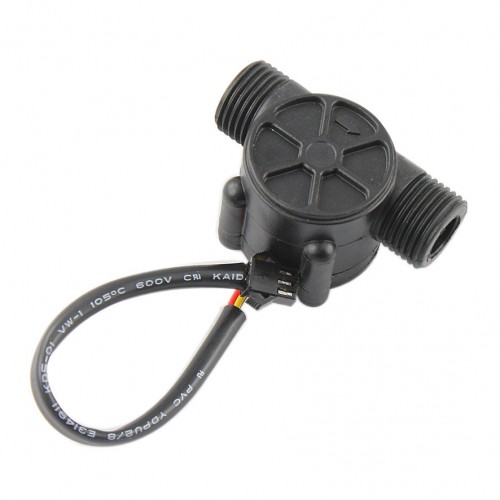

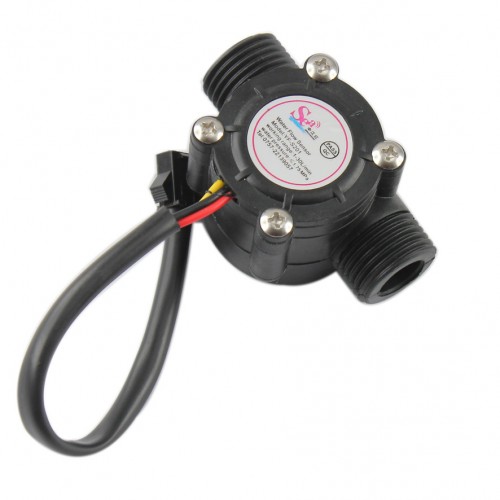

YF-S201 Water Flow Sensor can be used to measure the flow of liquids in both industrial and domestic applications. This sensor basically consists of a plastic valve body, a rotor and a hall effect sensor. The pinwheel rotor rotates when water / liquid flows through the valve and its speed will be directly proportional to the flow rate. The hall effect sensor will provide an electrical pulse with every revolution of the pinwheel rotor. This water flow sensor module can be easily interfaced with Microcontrollers, Arduino Boards and Raspberry Pi. Connect the PWM output of this module to interrupt pin of microcontroller unit and count the number of pulses / interrupt per unit time. The rate of water flow will be directly proportional to the number of pulses counted.
Features :
Model : YF-S201
Operating Voltage : 5V ~ 24V DC
Min. Working Voltage : 4.5V DC
Sensor Type : Hall Effect
Current Requirement : 15mA @ 5V
Operating Temperature Range : -25°C ~ 80°C
Operating Humidity Range : 35% ~ 90% RH
Water Pressure : ≤ 1.75MPa
Flow Rate : 1 – 30 L/min
Cable Length : 15cm
Connection Thread : 1/2″
Pin Out :
RED – Power Input
BLACK – Ground
YELLOW – PWM Output Signal
